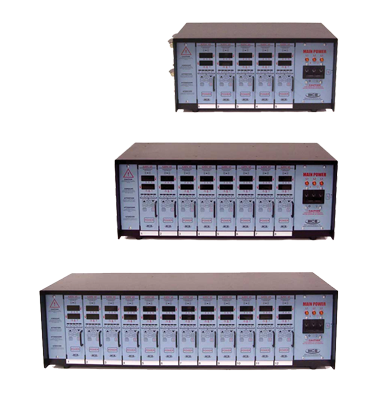

Mainframes are available in twelve base configurations. 5, 8, and 12 zone cabinets are illustrated here. Larger configurations (16 to 48 zone) consist of 2, 3, or 4 cabinets fastened together and prewired to form an integrated system with a single main AC input connection.
Standard mainframes accept 240VAC, 3 Phase, 4-wire 50-60Hz input power as factory standard. Other voltage, phase, and load balancing requirements can be met through following diagrams found on the rear access cover of the mainframe. Adjustments can be made in field by technical personnel, or the units can be pre-wired to specifications at the time of order.
The MFCP line of mainframes include communications and are designed to accept the GITC-15 series of temperature controllers. Due to manufacturer differences, the MFCP mainframes are not compatible with other manufacturer's controllers with communication abilities.
When ordering, please specify wiring needs and zone capacity. Please see Ordering Information for more options.
Part numbers:
